Tools Needed

  • PVC pipe cutter or hacksaw

Shop Lowe's Collection

Lowe's Swing Joint Parts Collection - All parts needed for this DIY project Shop All Parts at Lowe's

As a Lowe's affiliate, I earn from qualifying purchases. This does not affect your price.

Parts Diagram & Instructions

Garden Sprinkler Parts Diagram - Complete assembly instructions with numbered parts list

Click image to view full screen, or download to save for reference while building

Parts Needed for This Project

  1. 1 x Sprinkler Head With Nozzle (pop-up or rotor, size fittings accordingly)
  2. 1 x Marlex (1/2 inch or 3/4 inch depending on sprinker size)
  3. 2 x Funny Elbows (1/2 inch or 3/4 inch depending on sprinker size)
  4. 1 x Funny Pipe (3 - 24 inches in length, customize the length to fit your needs)

Safety First

Wear gloves to protect your hands from sharp PVC edges, tools, and messy dirt or mud while working on your sprinkler system.

Video Tutorial

Watch me demonstrate how to assemble a sprinkler swing joint for easy installation and repairs.

Video releases in

Get Everything You Need at Lowe's

Shop the complete parts collection for this project. Available for delivery or free store pickup.

Shop Garden Sprinkler Parts

Simpler Alternative

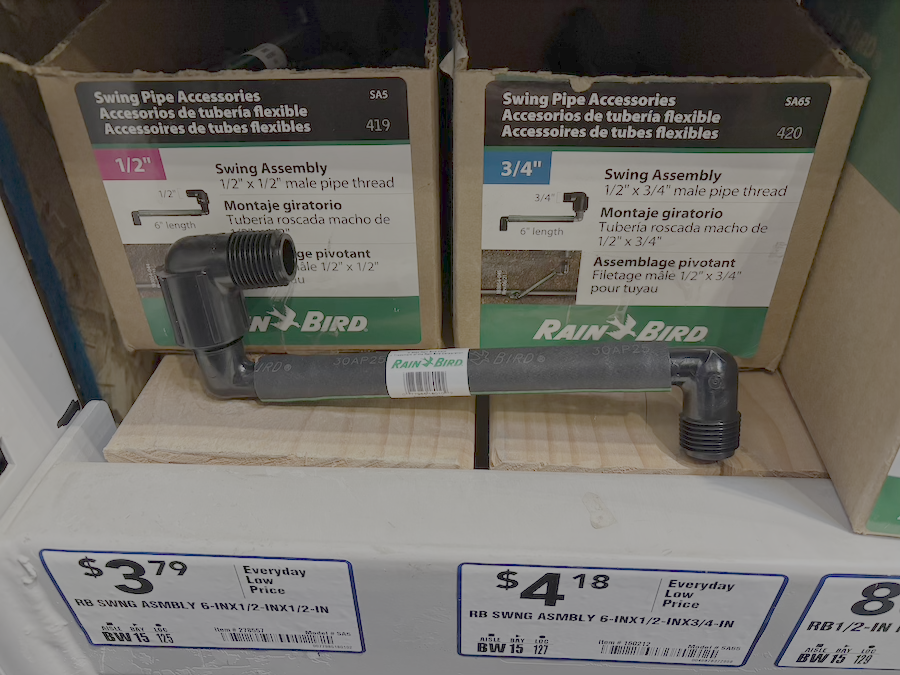

Don’t want the hassle of building your own swing joints? Lowe’s stocks pre-assembled swing joints made by Rain Bird.

Lowe's Pre-Assembled Swing Joints by Rain Bird - Easy installation sprinkler swing joints Get Pre-Assembled Swing Joints at Lowe's

As a Lowe's affiliate, I earn from qualifying purchases. Prices and availability may vary.
